09
SURF

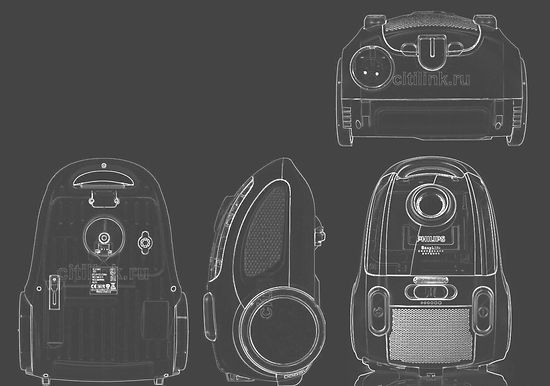

BLUEPRINT
Select an object with enough image material to serve as the canvas background layer. These canvas images are then projected onto the background layer in Alias.
TASK & REQUIRED RESULTS
//Rebuild of a technical object with complex surfaces
//Using the software Autodesk Alias Autostudio
REMODELING OF A VACUUM CLEANER

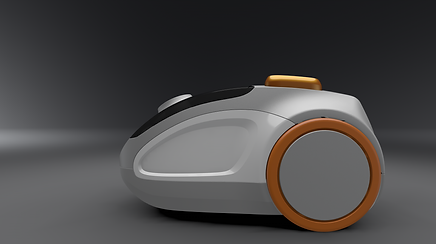

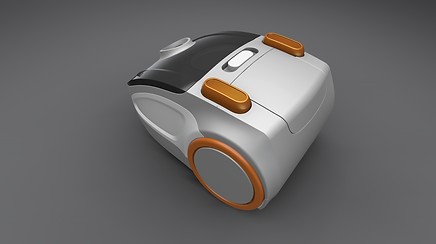

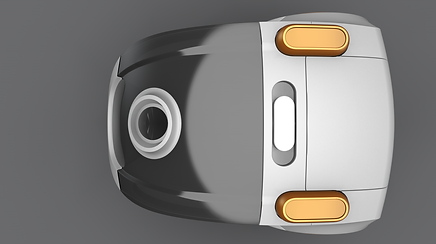

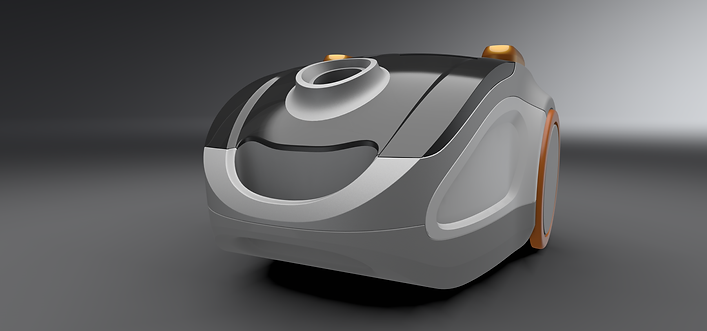

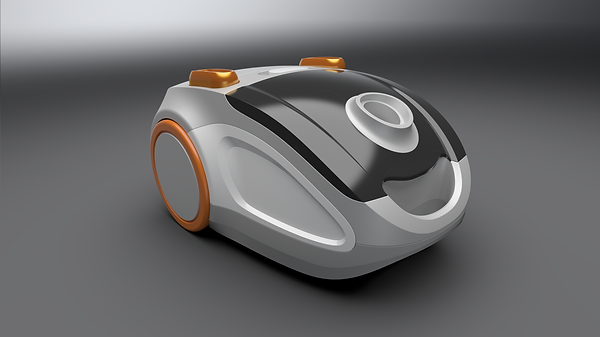

MODELING & RENDERING
The surfaces are then reproduced in Alias with the help of various tools. Care must always be taken to ensure that the curves are at least tangential and that no broken or wavy surfaces are created. Finally, the file is loaded into VRED. There materials were assigned and the renderings were created.
MODELING
ACE
